NAEOTOM Alpha.Prime for RTCount on clarity
Clarity is where confident decisions begin. In radiation therapy, clarity reveals what matters, reduces uncertainty, and guides the path forward.With high image quality and Quantum Spectral data in a single scan, NAEOTOM Alpha.Prime for RT empowers accurate, confident treatment planning. Count on NAEOTOM Alpha.Prime for RT.
Benefits

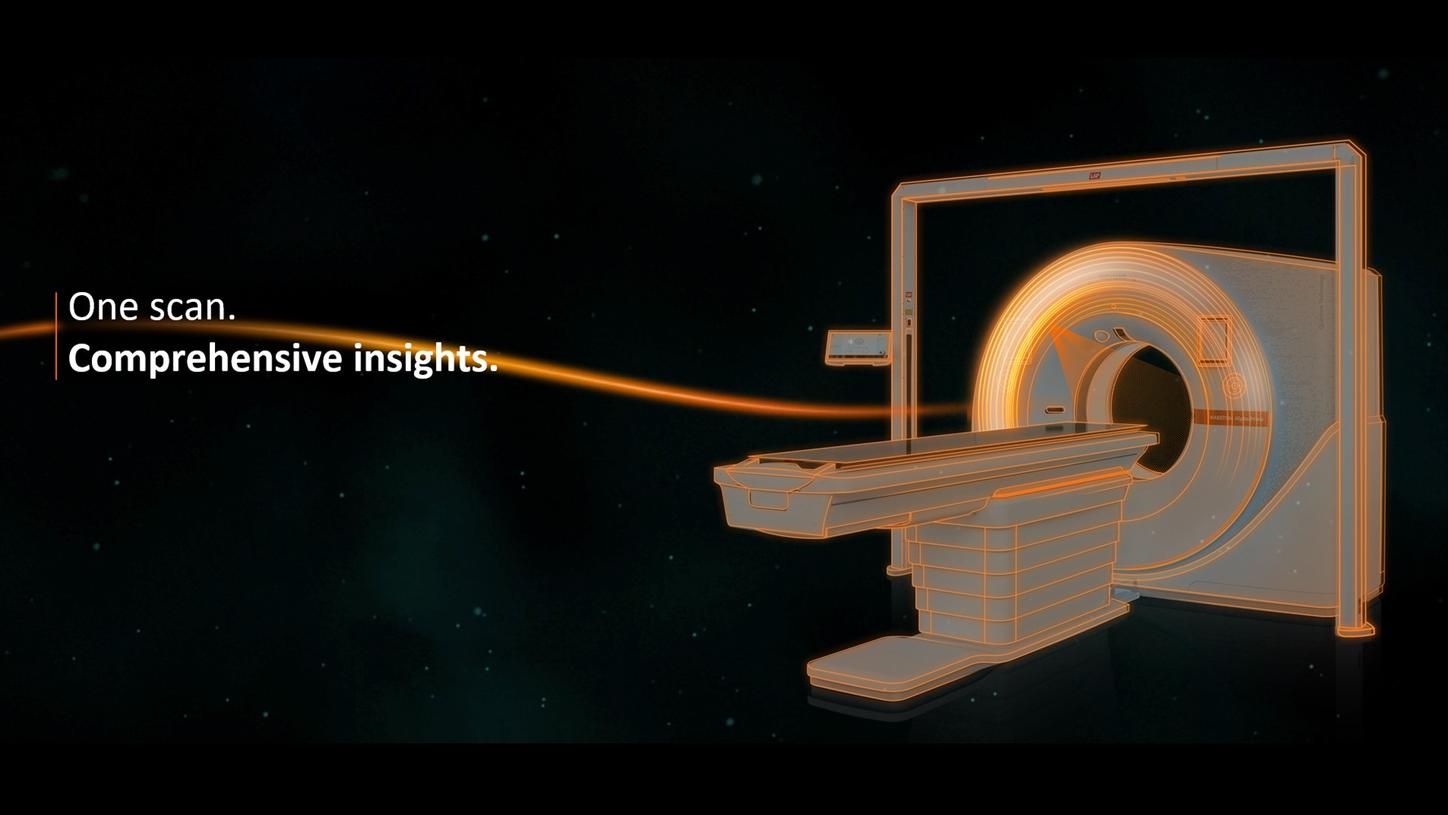

NAEOTOM Alpha.Prime for RT captures the complete dataset in one scan, allowing post-scan parameter adjustments and individually matching clinical needs for comprehensive insights.

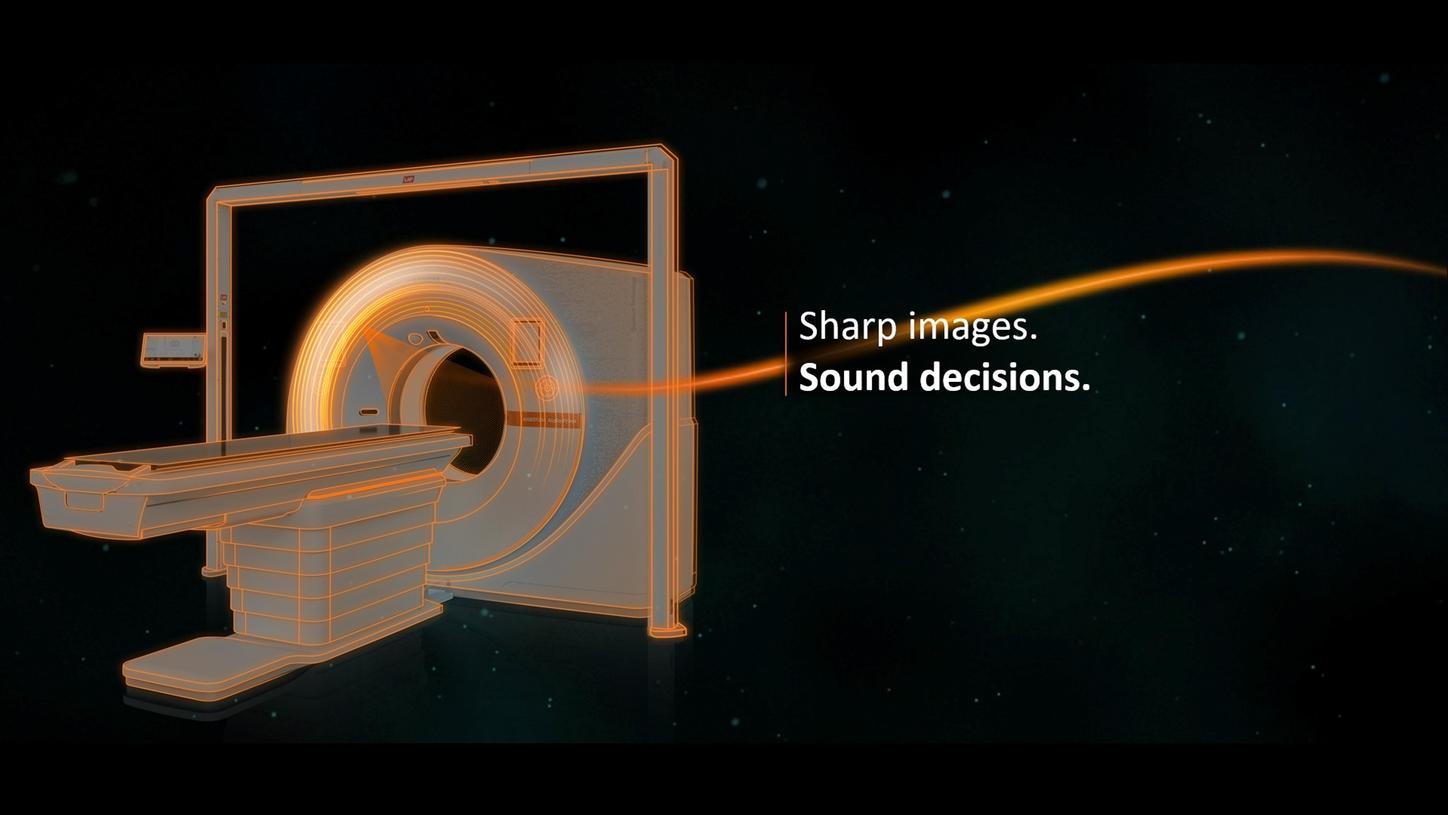

NAEOTOM Alpha.Prime for RT delivers sharp images, contrast, and spatial resolution for accurate target delineation and sound treatment decisions.
The CT system supports clinicians in their decision making.

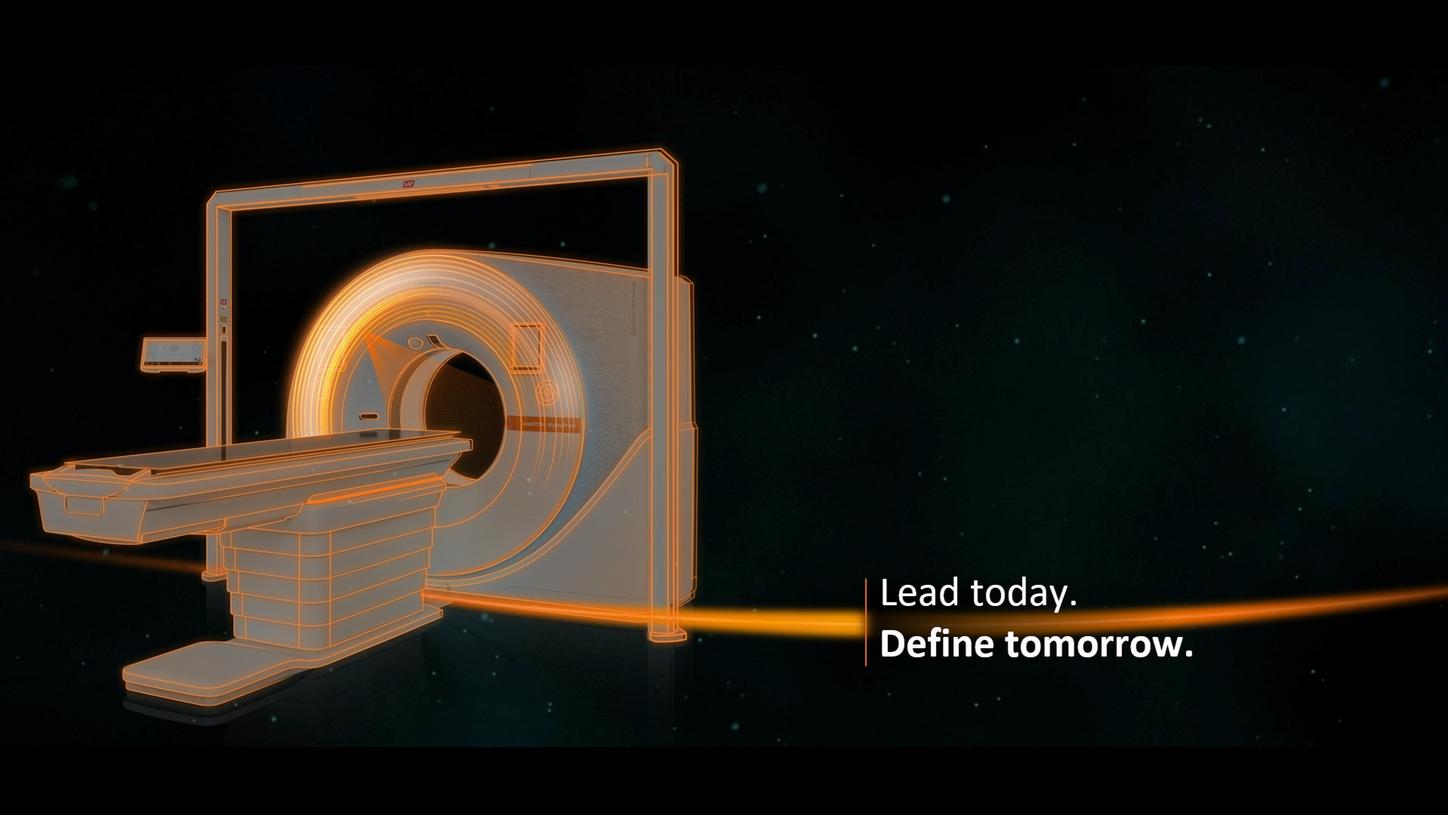

NAEOTOM Alpha.Prime for RT gives your institution the opportunity to lead in clinical excellence, enables shared-use collaborations, and empowers institutions to lead today and define the tomorrow of radiation therapy imaging.
NAEOTOM Alpha.Prime for RT captures the complete dataset in one scan, allowing post-scan parameter adjustments and individually matching clinical needs for comprehensive insights.
Evidence
Clinical Cases
/

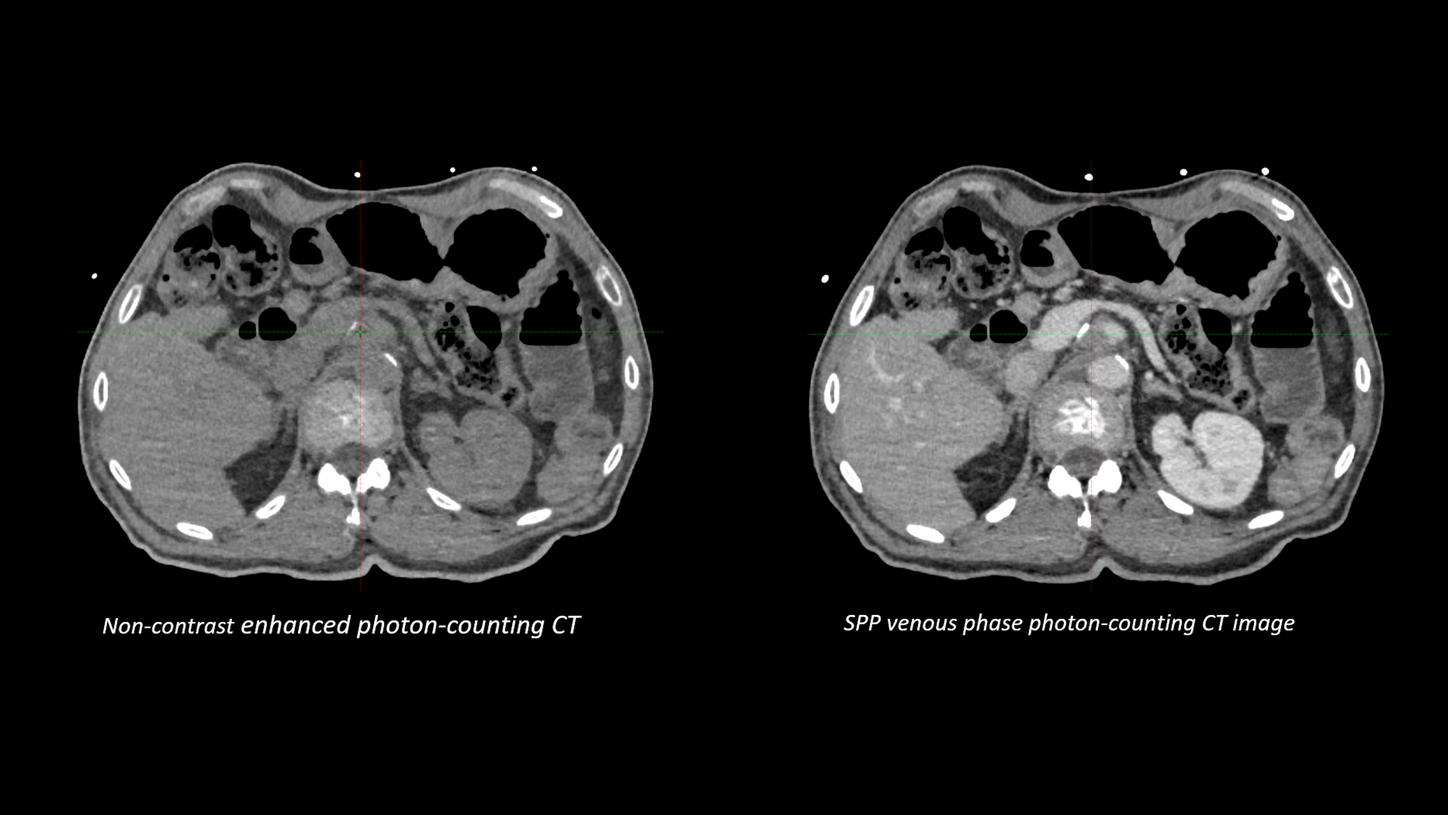

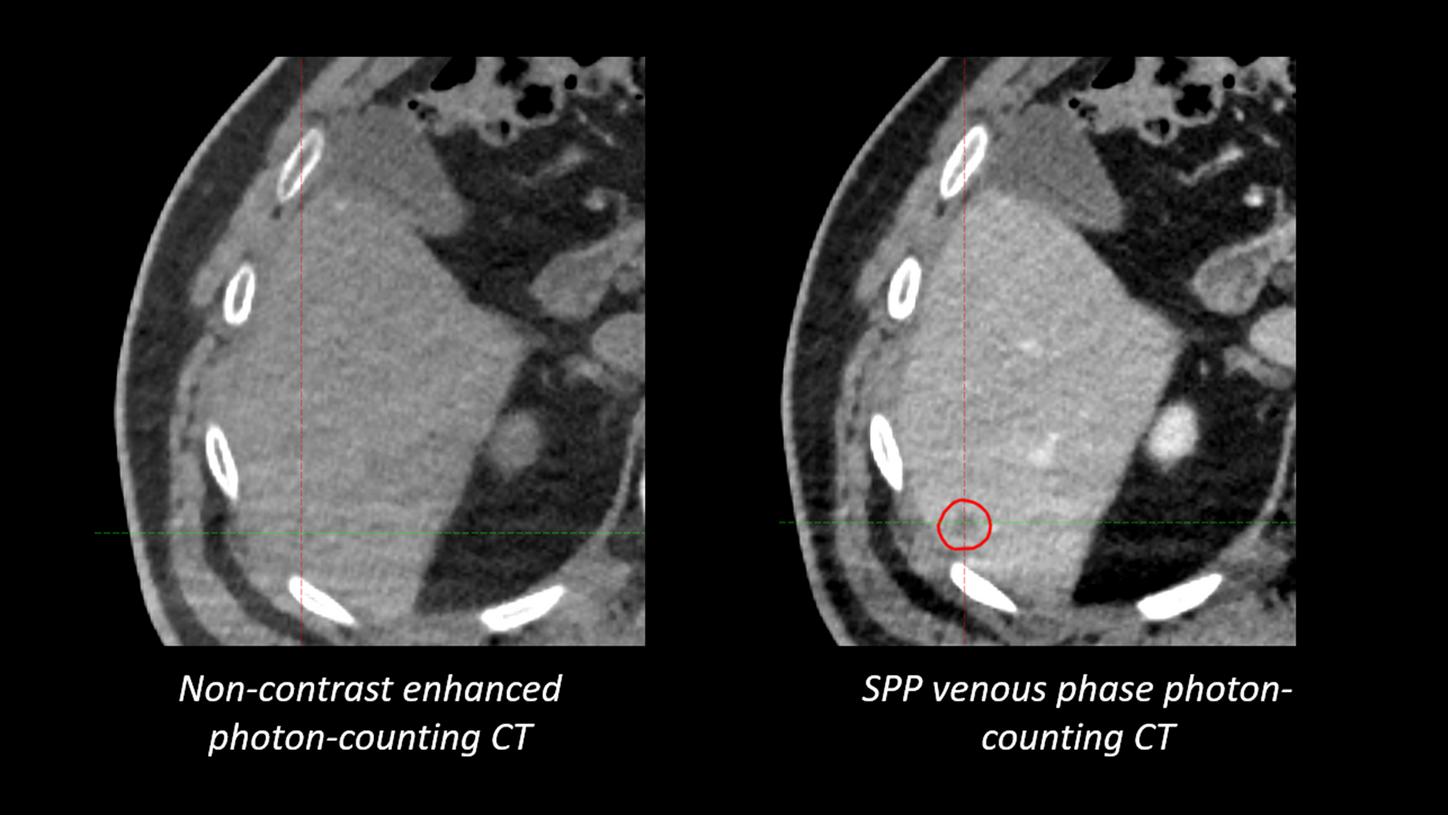

Example: Small Liver Targets
- Small (~4 mm) lesions are usually visible on contrast enhanced PCCT images
/
"Compared to previous images, those acquired with our new photon-counting scanner show considerably greater detail. For instance, we can now detect very small liver lesions as small as 4 mm on post-contrast images. The enhanced visibility provided by photon-counting technology enables us to use much narrower margins between the GTV and CTV, allowing for dose escalation鈥攎ight lead to improved patient outcomes." 9
Radiologist and Oncologist, Radiochirurgia Zagreb, Croatia
Highlight Features
/

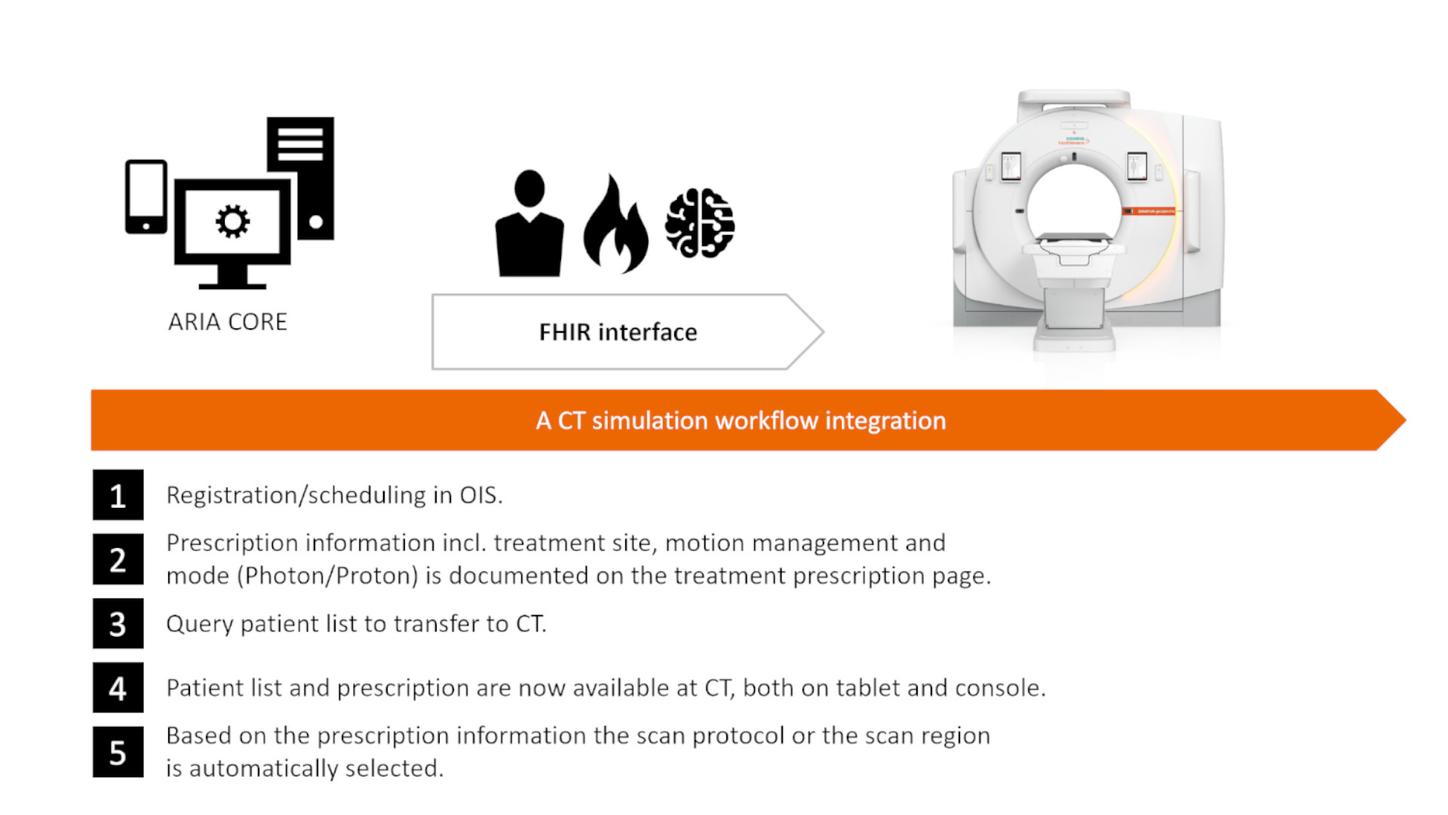

Oncology Exchange1,2
- A paperless integrated workflow by transferring prescription informatio
- Enhance the entire radiotherapy simulation workflow, by automatically loading the RT scan protocol based on the treatment prescription information.
/

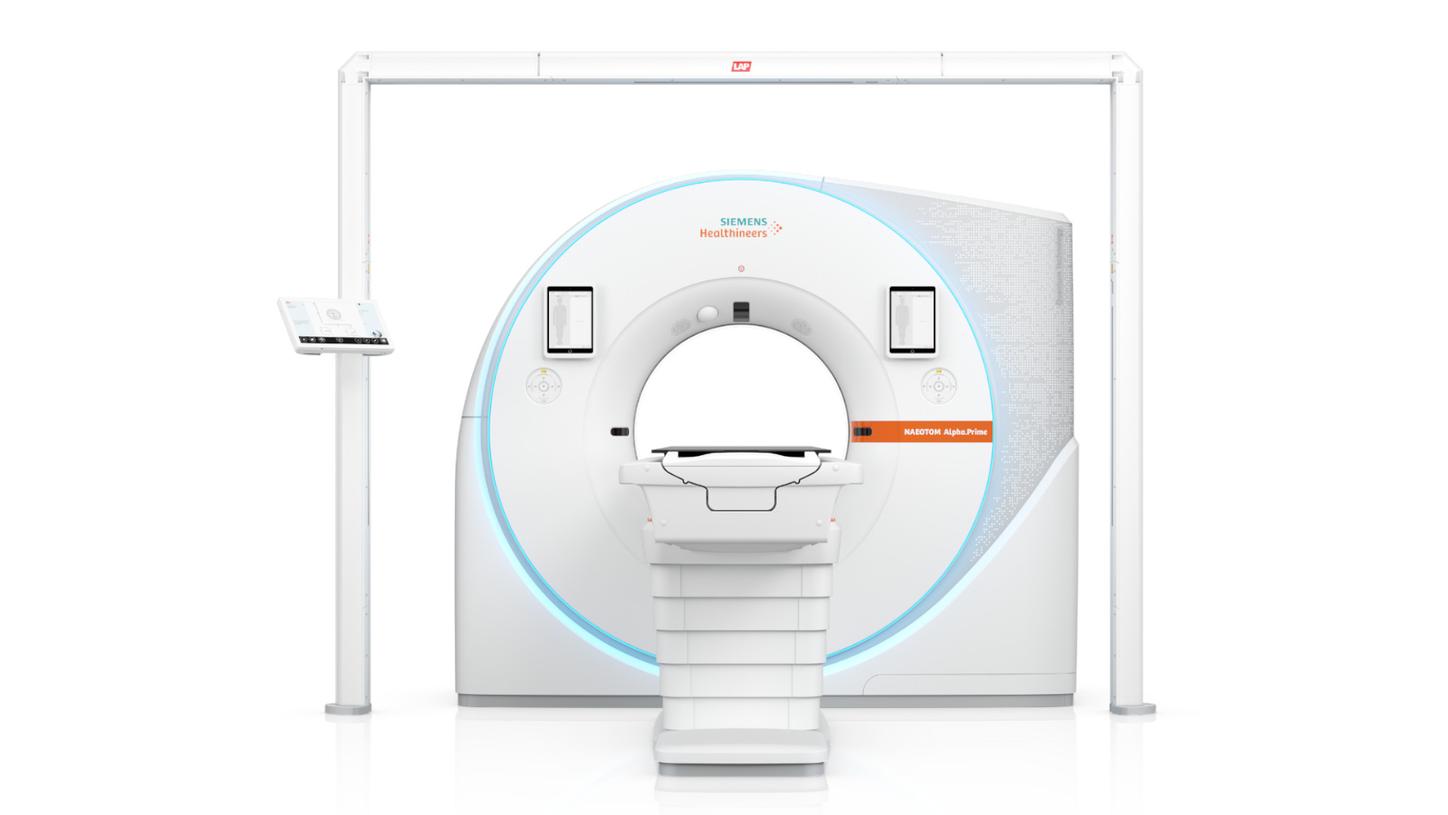

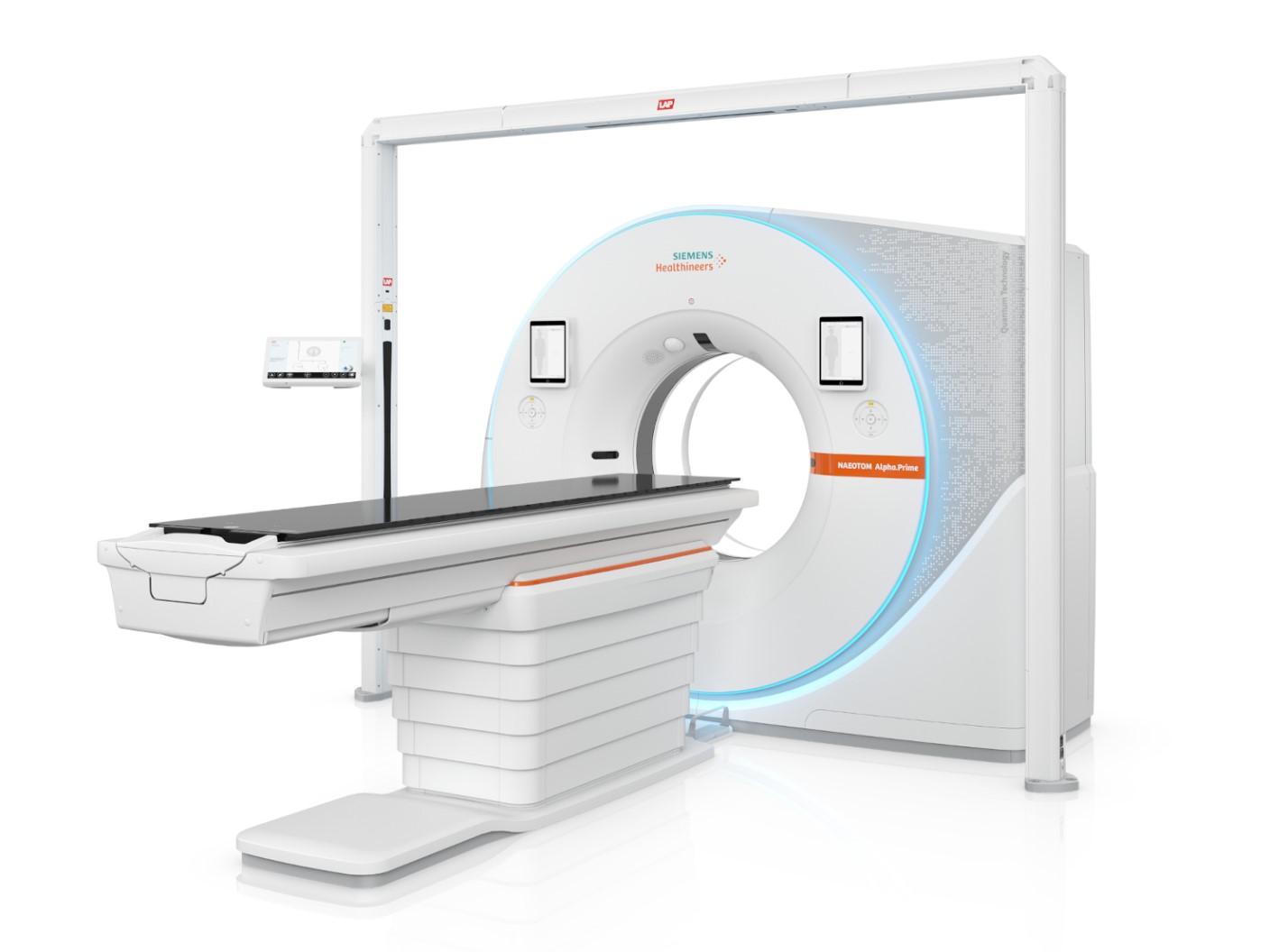

Take a closer look at NAEOTOM Alpha.Prime for RT
Technical Details
Technical Specifications
Detector
6 cm QuantaMax庐 photon-counting CT detector
X-ray tube
Vectron X-ray tube and Tin Filter
Max. number of acquired slices
144 slices
Number of physical detector rows
288 slices
mA
up to 1300 mA
Temporal resolution
down to 125 ms
kV
70, 90, 120, 140 kV
Sn100, Sn140 kV
z-coverage
144 x 0.4 mm
120 x 0.2 mm (Quantum HD)
Spatial resolution
0.11 mm (in-plane) in Quantum HD mode
Power
120 kW
Table load
up to 750 lbs (340 kg)
Max. scan speed
345 mm/s (max pitch 1.5)
Downloads
1
Optional.
2
Requires ARIA 18.1 MR1 or higher and FHIR4ARIA 4.6 or higher; FHIR = Fast Healthcare Interoperability Resources. Availability with 3rd party OIS systems to be clarified by customer with corresponding OIS vendor.
3

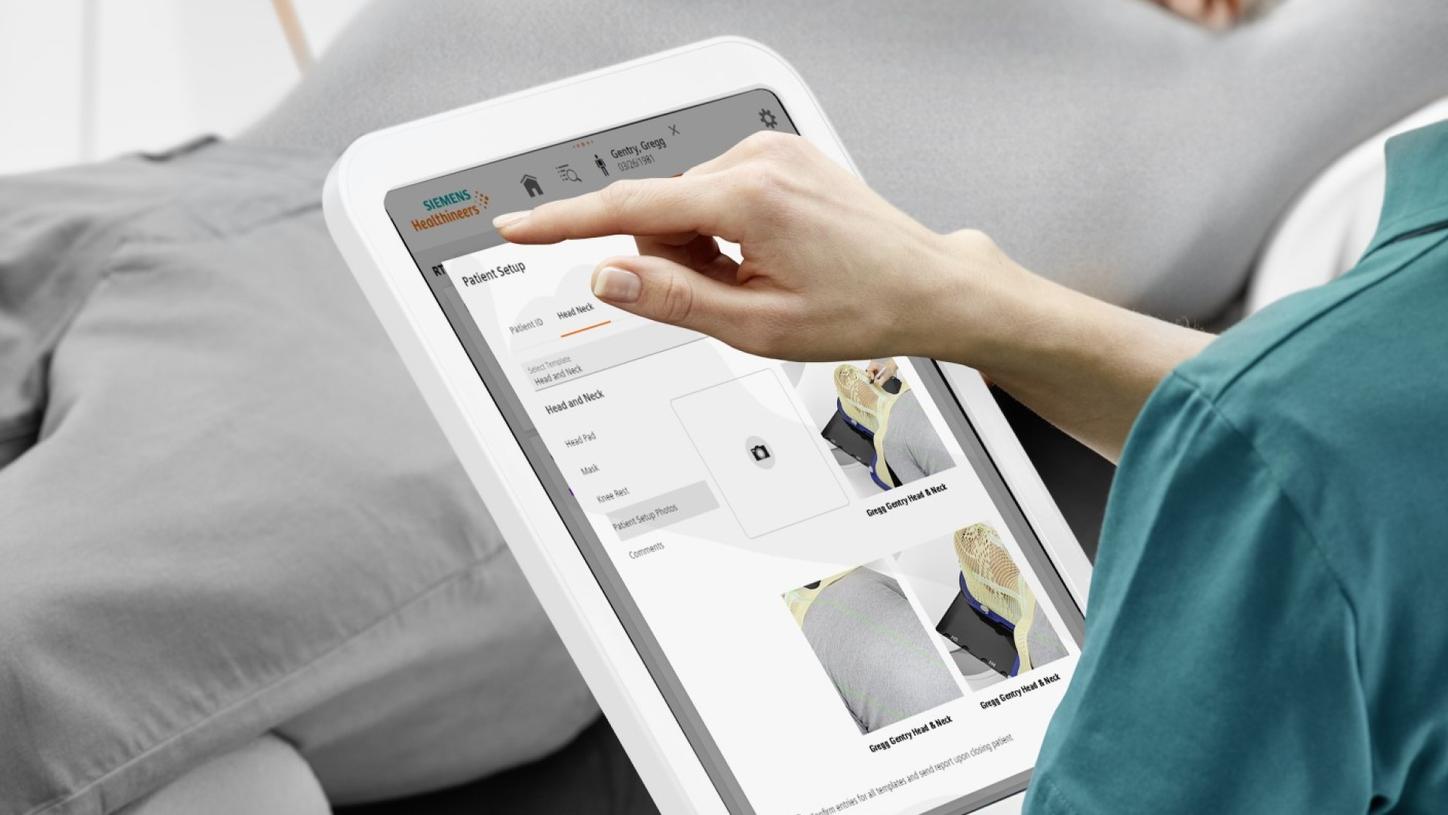

DirectSetup Notes is intended for digitalizing patient setup documentation to ease the RT workflow. The operation and the configuration of the feature must be conducted by trained healthcare professionals.
4
The products/features mentioned herein are pending 510(k) clearance and are not yet commercially available in the United States. Their future availability cannot be guaranteed.
5
Clinical evaluation from Universit盲tsklinikumErlangen, Strahlenklinik, Germany using DirectORGANS VA40 on a SOMATOM go.Open Pro and syngo.via RTiS Organs RT VB50. SW-Version VB50 RTiSOrgans RT is equivalent to DirectORGANS SW-Version VA40
6
The image quality for the area outside the 60cm standard scan field of view does not meet the image quality of the area inside the 60cm standard scan field of view. Image artefacts may appear, depending on the patient setup and anatomy scanned. HD FOV allows using a FOV outside of the 60 cm standard scan field of view but has restrictions as outlined below. For high accuracy treatments like SBRT or PT the possible geometrical accuracy as well as HU accuracy of HD FOV might not be sufficient for treatment planning. Evaluation of novel AI-based extended field-of-view CT reconstructions, https://pubmed.ncbi.nlm.nih.gov/33978240/hpubmed.ncbi.nlm.nih.gov/33978240/ | The statements by customers of Siemens Healthineers described herein are based on results that were achieved in the customer's unique setting. Because there is no 鈥渢ypical鈥 hospital or laboratory and many variables exist (e.g., hospital size, samples mix, case mix, level of IT and/or automation adoption) there can be no guarantee that other customers will achieve the same results.
7
DirectORGANS is part of syngo.via which is a medical device on its own right. syngo.via and the syngo.via based software are not commercially available in all countries. Their future availability cannot be guaranteed.
8
Quantum DirectSPR is part of syngo.via which is a medical device on its own right. syngo.via and the syngo.via based software are not commercially available in all countries. Their future availability cannot be guaranteed.
9
The statements by customers of Siemens Healthineers described herein are based on results that were achieved in the customer's unique setting. Because there is no 鈥渢ypical鈥 hospital or laboratory and many variables exist (e.g., hospital size, samples mix, case mix, level of IT and/or automation adoption) there can be no guarantee that other customers will achieve the same results.
The products/features mentioned herein are not commercially available in all countries. Their future availability cannot be guaranteed.
The information shown herein refers to products of third-party manufacturers and thus is in their regulatory responsibility. Please contact the third-party manufacturer for further information.
NAEOTOM Alpha.Prime is pending 510(k) clearance and is not yet commercially available in the United States.
