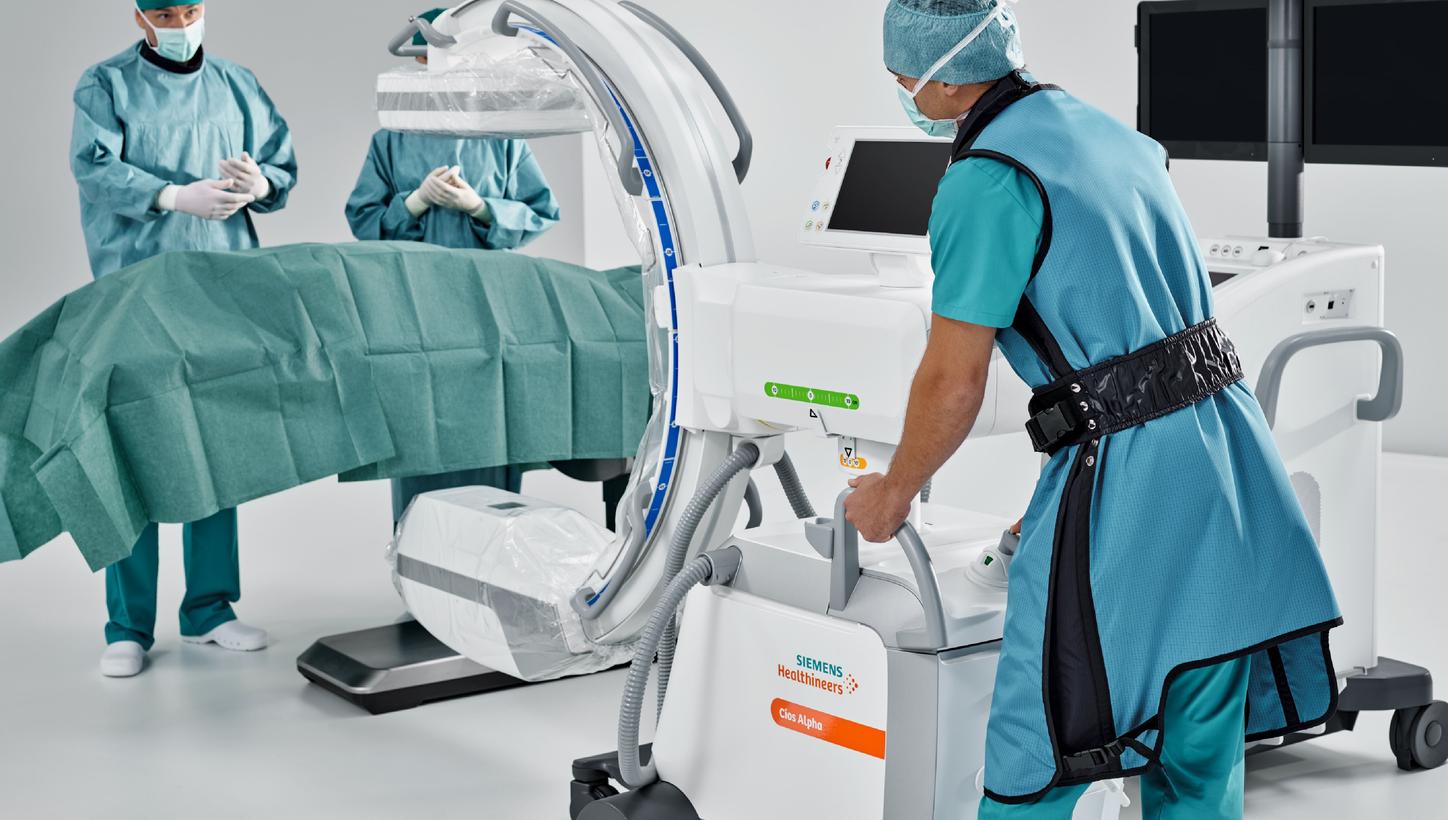

Cios Alpha.neoA mobile C-arm for 2D intraoperative imaging
Perfect balance. Every time.
Cios Alpha.neo features the Retina Imaging Chain with either IGZO or CMOS detector technology. It offers automated power management with active cooling for extended endovascular procedures.
Benefits
Cios Alpha.neo is a high-definition mobile C-arm featuring the proven Retina Imaging Chain. Combined with a high-power generator and dedicated CARE technologies, the system allows you to achieve the right balance between image quality and dose.1
- Benefit from the right image quality, thanks to the Retina Imaging Chain2 featuring either IGZO or CMOS detector technology.
- Use tailored Exam Sets and automated dose settings for every procedure, thanks to CARE technology.3
- Access extra imaging power when needed with the Energy Storage Unit, which buffers energy to increase maximum power and triples the mean power for acquisitions lasting up to30 seconds.
- Evaluate the region of interest easily, thanks to automated SpotAdapt image-quality regulation and smart collimation.3
- Operate the C-arm at the table-side using the electromagnetic brakes and laser-light localizer. Save and recall orbital and angular C-arm rotations along with collimation settings using the storage function.
- Get up to speed quickly in your workflow with the intuitive touch user interface that can be directly mounted at the OR table and the target pointer, which helps you navigate to the target region.3
- Enhance communication in the operating room, thanks to color coding that supports C-arm positioning.
- Simplify equipment handling and keep your hands free for patient care with the wireless footswitch.
- Confidently perform even lengthy and intensive acquisitions, thanks to intelligent power management and active cooling.
- Benefit from minimized ghosting effects, even in dynamic workflows with moving structures, thanks to CMOS detector technology.4
- Benefit from the right image quality, thanks to the Retina Imaging Chain2 featuring either IGZO or CMOS detector technology.
- Use tailored Exam Sets and automated dose settings for every procedure, thanks to CARE technology.3
- Access extra imaging power when needed with the Energy Storage Unit, which buffers energy to increase maximum power and triples the mean power for acquisitions lasting up to30 seconds.
- Evaluate the region of interest easily, thanks to automated SpotAdapt image-quality regulation and smart collimation.3
Evidence
Imaging for multiple surgical disciplines
Cios Alpha.neo supports a range of surgical procedures with its intraoperative 2D imaging.
Bypass revision with PTA stenting
Courtesy of Marc Weigand, MD, Alb Fils Kliniken, G枚ppingen, Germany
Testimonials and interviews from clinical use
Discover what clinical users have to say about the 2D intraoperative mobile C-arm, Cios Alpha.neo.
Cios Alpha 鈥 A story about the perfect balance of image quality and dose
Read the interview with Tara Mastracci, MD, and Jason Constantinou, MD, Royal Free London, UK, 2024.
Technical Details
Learn more about what鈥檚 inside.
Detector technology
Flat detector: IGZO5 (indium gallium zinc oxide)
CMOS5 (complementary metal-oxide semiconductor)Field of view
IGZO: 30 x 30 cm (12" x 12")
CMOS: 21 x 21 cm (8" x 8鈥)
CMOS: 30 x 30 cm (12" x 12")Peak power
25 kW / 12 kW5
Orbital movement
148掳 (-51.5掳 to +96.5掳)
Free space
84 cm (33.1鈥)
Image acquisition
Single Image
Fluoroscopy
Fluoroscopy High Level5
Subtraction / Roadmap5
Digital Cine Mode5Vascular software
Vascular Software5, Vascular Software Premium5
Live graphical overlay
Yes5
Stenosis quantification
Yes5
2D measurement
Yes5
Injector trigger interface
Yes5
Navigation interface
NaviLink 2D5
Energy Storage Unit
Yes5
Cooling system tube
Active5
Brake control
Electromagnetic brakes
Table-side control
Yes5 remote user interface
Laser-light localizer
Yes5
Wireless footswitch
Yes5
The statements by Siemens Healthineers鈥 customers described herein are based on results that were achieved in the customer's unique setting. Because there is no 鈥渢ypical鈥 hospital or laboratory and many variables exist (e.g., hospital size, samples mix, case mix, level of IT and/or automation adoption) there can be no guarantee that other customers will achieve the same results.
