Atellica SolutionMaximum productivity and precision when it matters most.
Seamlessly integrating immunoassay (IM) and clinical chemistry analysis鈥攁nd infusing the process with industry-leading digitization, next-level sample-management automation, and AI-powered intelligence鈥擜tellica庐 Solution is where simplicity and control merge so you can focus on driving better outcomes.
Benefits
Our goal is to empower heroes in the lab. Your tireless work is making a difference and saving lives, and we're committed to supporting you in that mission. Our technologies and innovations are designed to enhance your abilities so that your work is amplified across your health system, regardless of size or location.

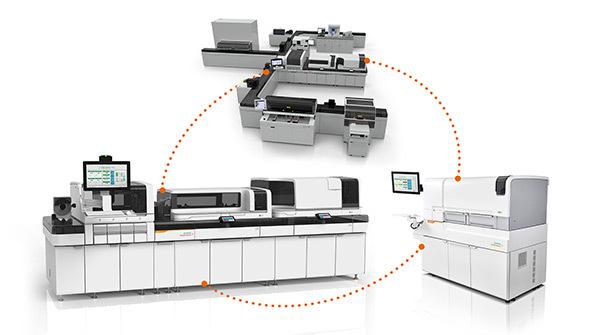

Design a system that is the right fit for your laboratory with Atellica Solution. Clockwise from top-left: Operator tablet; Atellica庐 IM; Atellica庐 Solution in a linear configuration; Atellica庐 CH 930
With up to 10 components that can be combined into tailored configurations including linear, L, and U shapes, Atellica Solution easily adapts to changing testing needs and space requirements:
- Create a system for your lab with up to six chemistry or up to four IM modules, right and left turns and pre and post analytic options.
- Implement individual chemistry or immunoassay or integrated chem/IA modules with the ability to load up to 60 samples at once.
- Connect Atellica Solution to Aptio Automation for complete efficiency and multidisciplinary total lab automation.
Make decisions faster with a broad menu and stats aspirated within 60 seconds.
Technology, clinical research, and expertise combine to enable diagnoses that are safe, effective, patient鈥恈entered, timely, efficient, and equitable to all workplaces.
- Elevate your laboratory's efficiency with our Integrated Multi Sensor Technology (IMT), ensuring maintenance-free electrolyte testing and automated calibration. Our growing menu of 210+ assays include fast turn-around tests so you can deliver results to physicians sooner (including a number of critical assays that can be delivered in under 10 minutes).
- Contribute to a sustainable future with our onboard water and waste management system, meticulously designed to align with UN 天美影院 goals and promote eco-friendly lab operations.
- Revolutionize sample handling with our patented Atellica庐 Magline Transport, featuring advanced bidirectional variable-speed sample transport that expedites movement of STAT samples to analyzers. Aspiration occurs within 60 seconds of barcode reading.
Customize your home screen to align with your laboratory workflow to begin your day faster.
Powered by features such as individual sample routing and sorting, intuitive software, and IT, Atellica Solution is engineered to boost the efficiency and effectiveness of the heroes in your lab, enabling them to do more with less.
- Anticipate accreditation requirements with integrated assay studies in our Laboratory Evaluation Suite.
- Enable automation functions and standardize system operation across your network.
- Simplify day-to-day operations with a tile-based tablet interface that prioritizes operator tasks.
Streamline sample management with integrated automation functions.
Enhance your laboratory's performance and precision with our Atellica庐 Integrated Automation (AIA) solution for pre- and post-analytical sample handling.
- Streamline and ensure secure sample management with 60-second STAT aspirations, intelligent routing, automatic reruns and dilutions, and end-to-end tracking for faster results and easy traceability.
- Reduce errors and improve bio-security with integrated, labor-saving sample-management capabilities including multi-rule sorting, decapping, sealing, and archiving.
- Operators enjoy the features of automation and have more time to focus on high-value tasks providing a more rewarding work experience.
Design a system that is the right fit for your laboratory with Atellica Solution. Clockwise from top-left: Operator tablet; Atellica庐 IM; Atellica庐 Solution in a linear configuration; Atellica庐 CH 930
With up to 10 components that can be combined into tailored configurations including linear, L, and U shapes, Atellica Solution easily adapts to changing testing needs and space requirements:
- Create a system for your lab with up to six chemistry or up to four IM modules, right and left turns and pre and post analytic options.
- Implement individual chemistry or immunoassay or integrated chem/IA modules with the ability to load up to 60 samples at once.
- Connect Atellica Solution to Aptio Automation for complete efficiency and multidisciplinary total lab automation.
Technical Details
Optimize lab productivity and precision. Tailor workflows with smart automation to meet your laboratory KPIs.
Product Specification
Description
- Chemistry analyzer with photometric and turbidimetric testing capabilities and electrolyte analysis using Integrated Multisensor Technology (IMT)
Throughput (tests/hour)
- Up to 1800: 1200 photometric, 600 IMT (Integrated Multisensor Technology)
- Reagent Compartment
- Two 70-position refrigerated trays
Assays Onboard
- Up to 70, 67 photometric and 3 IMT, Na+, K+, Cl鈭
- Walkaway Time
Up to 5 hours
- Footprint (h x w x d)
- 1364 x 1491 x 1156 mm; 53.7 x 58.7 x 45.5 inches
Product Specification
Description
- Immunoassay analyzer with chemiluminescence testing methodology using advanced acridinium ester technology
Throughput (tests/hour)
IM 1300: Up to 220 immunoassay; IM 1600: Up to 440 immunoassay
Sample Capacity
Up to 440 samples
- Reagent Compartment
- 42 primary and 35 ancillary refrigerated positions with continuous mixing
- Assays Onboard
- Up to 42 immunoassay
- Walkaway Time
IM 1300: Up to 7.5 hours; IM 1600: Up to 5 hours
- Footprint (h x w x d)
1500 x 1453 x 1167 mm; 59.1 x 57.2 x 45.9 inches
Product Specification
- Sample capacity
- 440
- Sample throughput (tubes/hour)
- Up to 500
- Footprint (h x w x d)
Without monitor: 1465 x 1222 x 1431 mm; 57.7 x 48.1 x 56.4 inches
Product Specification
Description
- Sample-handling component for a single Atellica CH930, IM 1300, or IM 1600 Analyzer, providing input/output of patient samples, calibrators, and QC
- Sample capacity
60
- Sample throughput (tubes/hour)
Up to 250
- Footprint (h x w x d)
- Without monitor: 1360 x 425 x 1100 mm; 53.5 x 16.7 x 43.3 inches
Product Specification
Description
- Integrates decapping into the analytical workflow with little or no additional footprint
- Walkaway time
- Up to 2,000 caps
- Sample throughput (tubes/hour)
- Up to 300 or 500 with additional Magline
- Magline Transport Loop Footprint (h x w x d)
- 1223 x 250 x 1109 mm; 48 x 10 x 44 inches
Product Specification
Description
- Integrates sealing into the post-analytical workflow of the system
- Walkaway time
- Up to 20,000 seals
- Sample throughput (tubes/hour)
Up to 480
- Footprint (h x w x d)
- 1307 x 392 x 1432 mm; 51.2 x 15.4 x 56.4 inches
Evidence
Singing River Health System
Jackson County, MS, USA
Singing River Health System is a three-hospital system that processes 1.8 million lab CPTs per year. Working together with Siemens Healthineers, they've adopted the Atellica Solution to increase their laboratories' throughput and decrease turnaround times.
Swedish Hospital
Chicago, IL, USA
Learn how Atellica Solution, Aptio庐 Automation, and Atellica庐 Data Manager have helped to simplify operations and enable Chicago-based Swedish Hospital to transform into a model laboratory for clinical workflow optimization and staff satisfaction.
UNC Health Network
Chapel Hill, NC, USA
When UNC Health needed to choose a healthcare partner they had three metrics for success: clinical lab staffing, expanded testing capabilities and better quality of care for their patients. 聽Learn how Siemens Healthineers addressed each of these challenges and created a blueprint for success.
Related Products
Atellica庐 Solution Portfolio of Products
The Atellica Solution Portfolio provides a range of capabilities that can help your health system contain costs and grow the lab business. Our technologies and innovations are designed to enhance your abilities so that your work is amplified across your health system, regardless of size or location.
Don't settle for less - choose the Atellica Solution Portfolio and join the new standard in doing more.
Atellica Solution Portfolio
Achieving true systemness is essential if you're ready to transform healthcare and make a difference at scale. This is the new standard, and with the Atellica Solution Portfolio, you can make it happen.
Atellica庐 CI Analyzer
This integrated chemistry/IA analyzer delivers the standardization and independent integration of the central lab to your entire network鈥攕o you can scale capabilities where and when you need them.
Atellica & Aptio
Engineered to support an unlimited number of analyzer and module connections, Aptio Automation Solutions satisfy the demands of your health system.
Automation and Lab Integration Solutions for everyone. Everywhere.
Atellica Integrated Automation (AIA) consolidates revolutionary sample management technology, intelligent software, and IT to provide workflow efficiency with the flexibility to add decapping with little or no additional footprint.
The Power of Digitalization and IT
Atellica庐 Diagnostics IT offers data-driven innovations to simplify lab operations and increase efficiency. It unifies data from your instrument and automation systems, combining sample, process, result, QC, and inventory data for greater insights than ever before.
Atellica庐 Data Manager
Standardize testing and streamline result management across your diagnostics network.
Atellica庐 Inventory Manager
Automated control of reagents and consumables across multiple locations to reduce costs, save time, and improve lab quality.
Atellica庐 Connectivity Manager
Enhance connectivity, integrate data, and maximize performance across your network.
