Atellica LumIQ AnalyserTrusted chemistry. Advanced technology. Modern design.​​
Illuminating the intelligence of urinalysis
Urinalysis is a cornerstone of frontline testing, essential for timely clinical decisions. In today’s fast-paced care environments, a smarter approach is needed to unlock its full potential.
Designed for simplicity, scalability, and efficiency, Atellica LumIQ Analyser merges cutting-edge digital imaging with 80+ years of industry-defining chemistry. This compact, connected, and intuitive analyser provides speed and accuracy with built-in safeguards. Its proprietary Auto-Checks technology offers rapid insights with less human subjectivity and error. The analyser seamlessly integrates into existing infrastructures to scale up capacity as testing volumes increase.
Benefits
Streamlining workflows, increasing efficiency, and providing timely, accurate results, Atellica LumIQ Analyser illuminates the full intelligence of point-of-care urinalysis.
Atellica LumIQ Analyser gives providers real-time access to intelligent urinalysis insight at the point of care - quickly delivering results clinicians can trust. With the same precision and assay versatility of the CLINITEK Family of Analysers, including urine reagent strips and hCG pregnancy testing, Atellica LumIQ Analyser merges trusted chemistry with advanced digital imaging technology to accelerate care without compromising on quality.

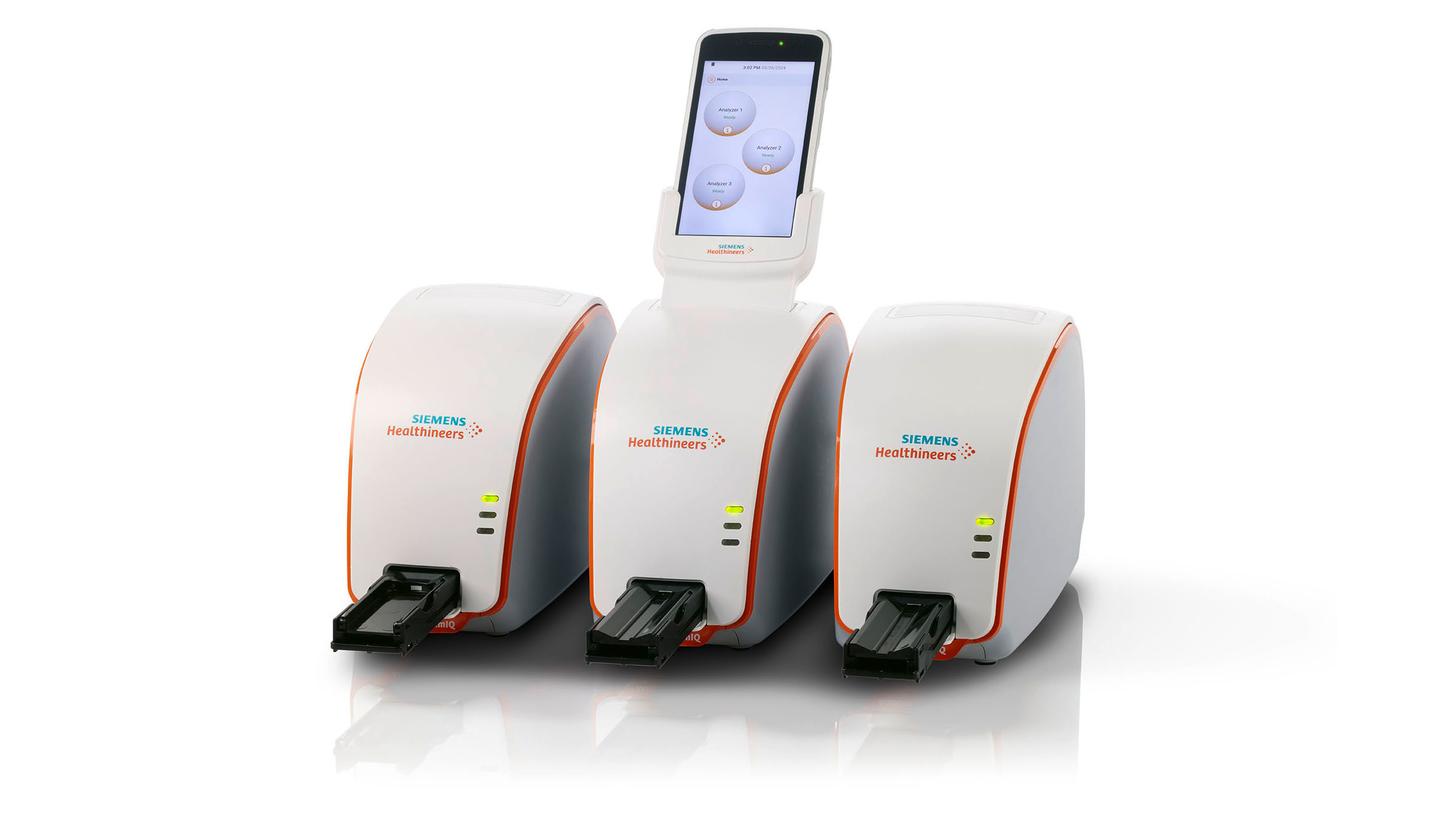

Its compact, human-centric design makes it easy to move and use, while the modern, intuitive interface and digitised workflows reduce the likelihood of user error. Plus, the analyser’s unique three-to-one module-to-display ratio allows for simultaneous testing, making it easier to scale capacity and meet increasing demands while reducing total costs of ownership.
Atellica LumIQ Analyser redefines integration for point-of-care urinalysis by centralising workflows and providing clinicians the efficiency they need - without adding more work to their plate.
With Atellica LumIQ Analyser, connectivity is twofold:
- built-in WiFi and seamless integration into existing IT infrastructures for streamlined data transmission from anywhere.

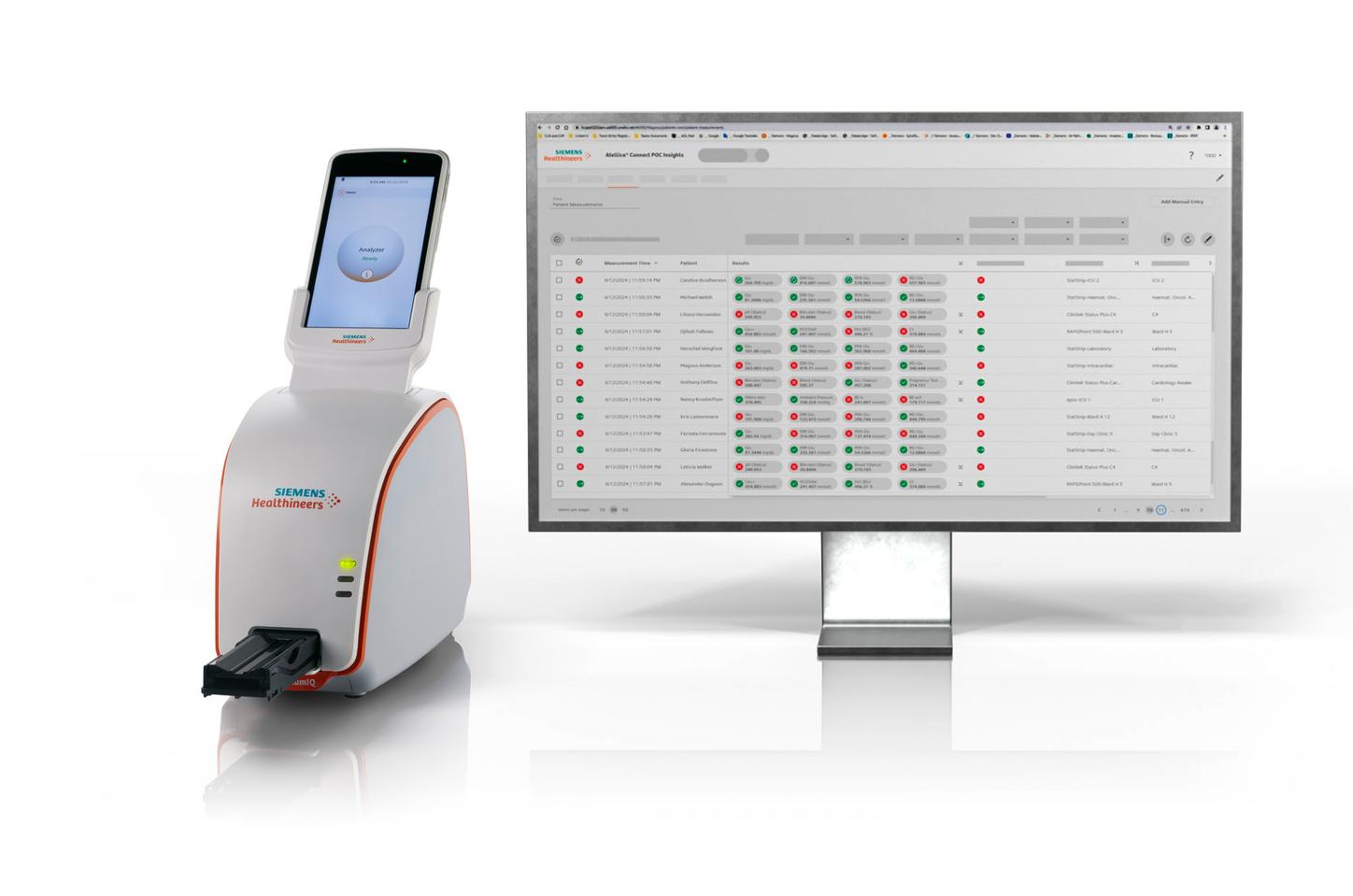

- clinicians can manage a fleet of Atellica LumIQ Analysers with Atellica Connect POC Insights or the POCcelerator Data Management System, to reduce manual processes. The system gives users actionable insights and advanced data analytics for personalised decision support and streamlined troubleshooting.

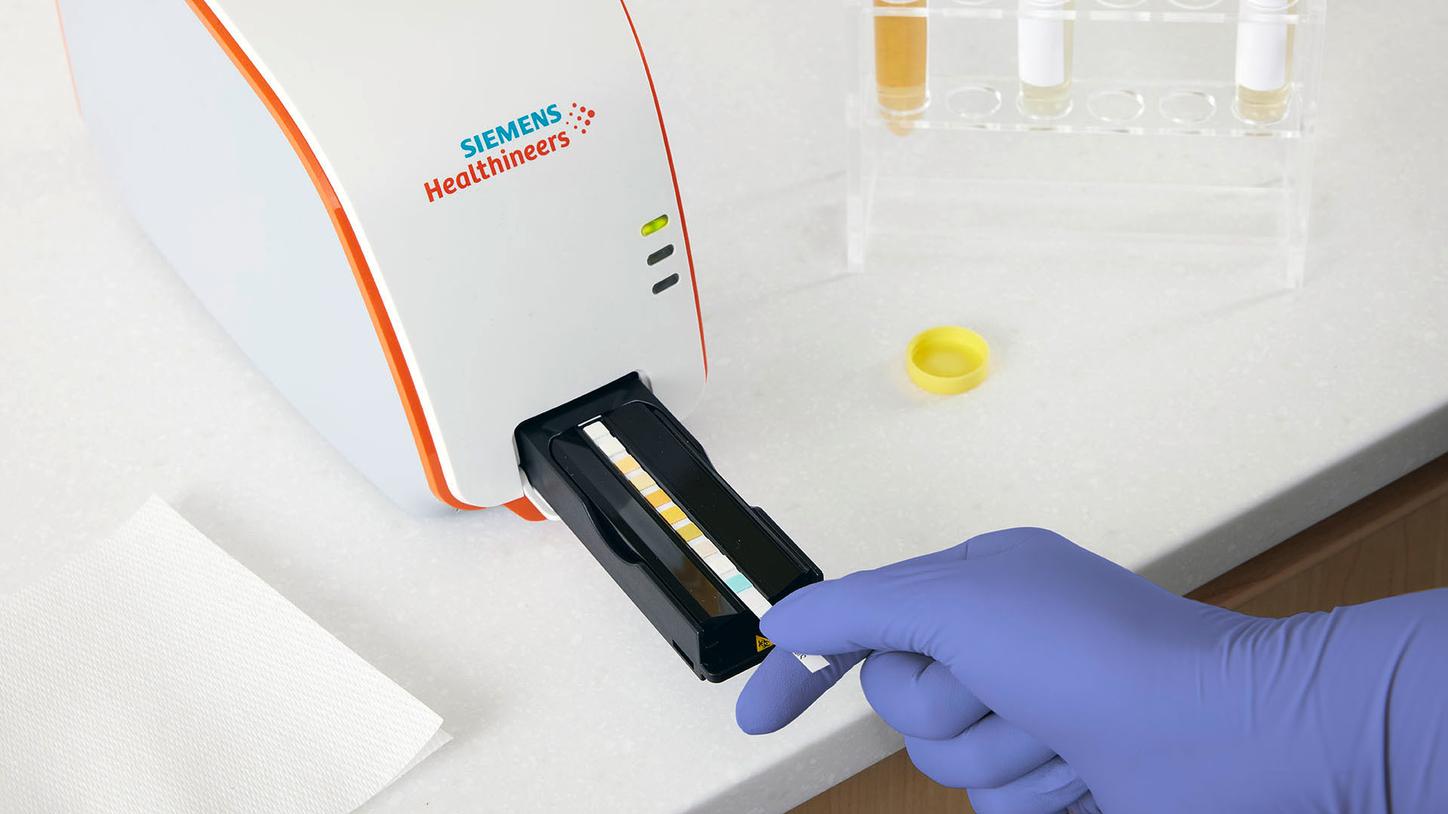

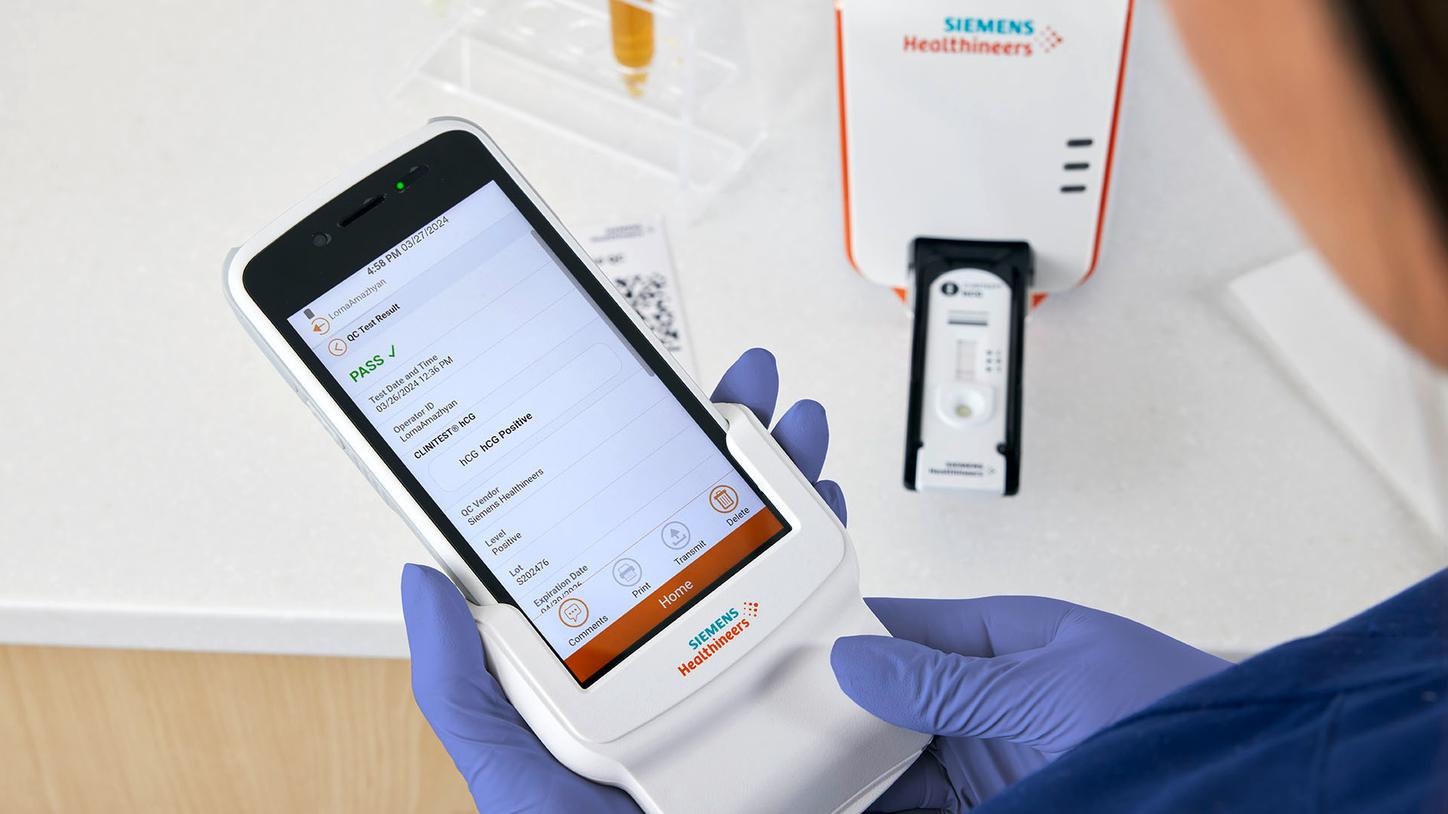

Consistent, accurate results across a broad testing menu: automatically read Siemens Healthineers urine reagent strips, flip the test table insert, place a CLINITEST hCG pregnancy test cassette and pipette the sample.
Atellica LumIQ Analyser gives providers real-time access to intelligent urinalysis insight at the point of care - quickly delivering results clinicians can trust. With the same precision and assay versatility of the CLINITEK Family of Analysers, including urine reagent strips and hCG pregnancy testing, Atellica LumIQ Analyser merges trusted chemistry with advanced digital imaging technology to accelerate care without compromising on quality.
Technical Details
Atellica LumIQ Analyser is a portable, easy-to-use, semi-automated analyser designed to read Siemens Healthineers reagent strips and cassettes, producing results intended for in vitro diagnostic use only in point-of-care and clinical laboratory settings.
Physical Dimensions
Depth: 23.7 cm (9.35 inches)
Height (with display) : 29.14 cm (11.47 inches)
Width: 10.79 cm (4.25 inches)
Weight (with display): 1.25 kg (2.75 lb)
Electrical Requirements
AC power supply: 100–240 VAC ±10%, 50/60 Hz
DC power supply: 24 V, 65 W maximum
Data Storage
QC results: 5,000 results
Patient results: 10,000 results
Operator list: 10,000 operators
Environmental Specifications
Instrument operating temperature: 15ºC to 32ºC (59ºF to 89ºF)
Instrument operating humidity: 10% to 90% RH (noncondensing)
Instrument operating altitude: 4500 m (14,764 ft)
Instrument storage humidity: 10% to 90% RH (noncondensing)
Instrument operating use: For indoor use only
Instrument storage temperature: –20°C to 60°C
Instrument operating environmental conditions: Keep away from direct sunlight.
Pollution degree: 2
Urine test strip operating temperature range: 18°C to 30°C
hCG cassette operating temperature range: 15°C to 30°C
Urine test strip operating humidity range: 18% to 80% RH (noncondensing)
hCG cassette operating humidity range: 20% to 80% RH (noncondensing)
Calibration
The Analytical Module’s integrated camera reads the Calibration Bar. The analyser auto-calibrates so there is no need to perform a separate calibration process.
Quality Control
Chek-Stix UA Diptube Liquid QC is designed and validated to perform quality control tests on Atellica LumIQ Analyser to ensure optimal instrument performance and accurate results.
